Tape Applicator

The Tape Applicator is designed to streamline and enhance the efficiency of the adhesive application process.
With advanced features and user-friendly controls, it offers precision, cost savings, and versatility for various packaging and adhesive needs.
Advanced Control System: Utilizes a man-machine dialogue mode, allowing adjustments to the production process in real-time based on actual conditions. This ensures optimal performance and adaptability.
Cost Efficiency: Delivers precision in millimetre accuracy at any speed. The double-sided easy tear tape adhesive can be applied on the gluing flap of folding boxes/cartons, replacing manual bonding processes and significantly improving production efficiency.
Versatile Applications: Suitable for a wide range of products, including boxes, delivery bags, corrugated boxes, smoke/wine boxes, gift boxes, and artware adhesive applications. This versatility makes it an invaluable tool in various packaging and adhesive fields.

Applications::

Technical Parameters:

Applications::

Control System:

The use of man machine dialogue mode, the production process can be adjusted according to the actual situation at any time to change.

Cost Control:

Precision in millimetre at any speed, double sided easy tear tape adhesive on the gluing flap folding box/carton, instead of the manual bonding processing, improved production efficiency.

Simple and Convenient to Operate:

Modular system design, and the control of other functions, all can be realized through one key switch on the touch screen easily.

Application Fields:

Applicable for boxes, delivery bags, corrugated boxes, and smoke/wine boxes, gift boxes, artware adhesive.

Technical Parameters:

Robus India is the foremost producers of Automatic Folder Gluer machines in India.

Technical Specification:

Search:

Model: Taping Machine	TS-1100C2

Model: Taping Machine	TS-1100C2
Electricity	AC220V 50~60Hz
Total Power	2.3KW
Max. Speed	90 m/min
G. Weight	1050Kg
Max Product Size:	1100 X 1200 mm
Min Product Size:	120 X 100 mm
Machine Size:	4.2 X 1.5 X 1.5 m
Wooden Package Box Size	3.8 X 1.65 X 1.65 m

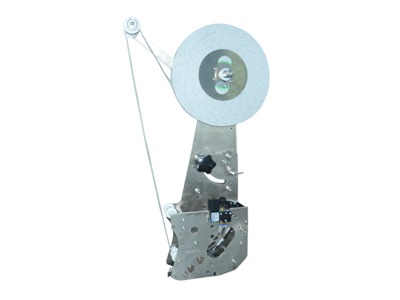

Applicator Model: Double Side Tape Applicator	KQ-TAH10A
Electricity Needs	AC220V 50~60Hz
Max. Speed	90 m/min
The Min. Distance	30 mm
Weight	18 Kg
Tape Width	5-35 mm
Internal Tape Roll Diameter	76-80 mm
Max. External Tape Roll Diameter	450 mm
Min. Application Tape Length	30 mm
Paper Weight	≥200 g /㎡
Air Pressure	0.4～0.6 Mpa
Tolerance	± 2 mm

Model: Tear Tape Applicator	KQ-TAH10B
Electricity Needs	AC220V 50~60Hz
Max. Speed	90 m/min
The Min. Distance	30 mm
Weight	16 Kg
Tear Tape Width	3-8 mm
Internal Tape Roll Diameter	30 mm
Tape Roll Width	80 mm
Min. Application Tape Length	30 mm
Paper Weight	≥200 g /㎡
Air Pressure	0.4～0.6 Mpa
Tolerance	± 2 mm

Model/ Controller	HG4
Electricity	AC220V 50~60Hz
Weight	2 Kg
Channels	Four Channels

Model: Hot-Melt Gluing System	110 C2
Tank Capacity	10L
Max. Melting Rate	10KG/HR
Max. Operation Temp.	200℃

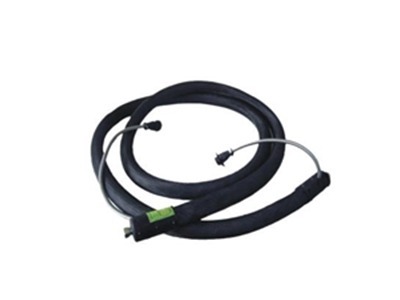

Hose/Gun	4 SET
Tank Capacity Spray Gluer Rate	400g/min.
Air Pressure	4KG/cm2
Dimensions	606 X 390 X 565 mm
Weight	68KG
Power Requirement	220V AC, 22A, 50/60HZ
